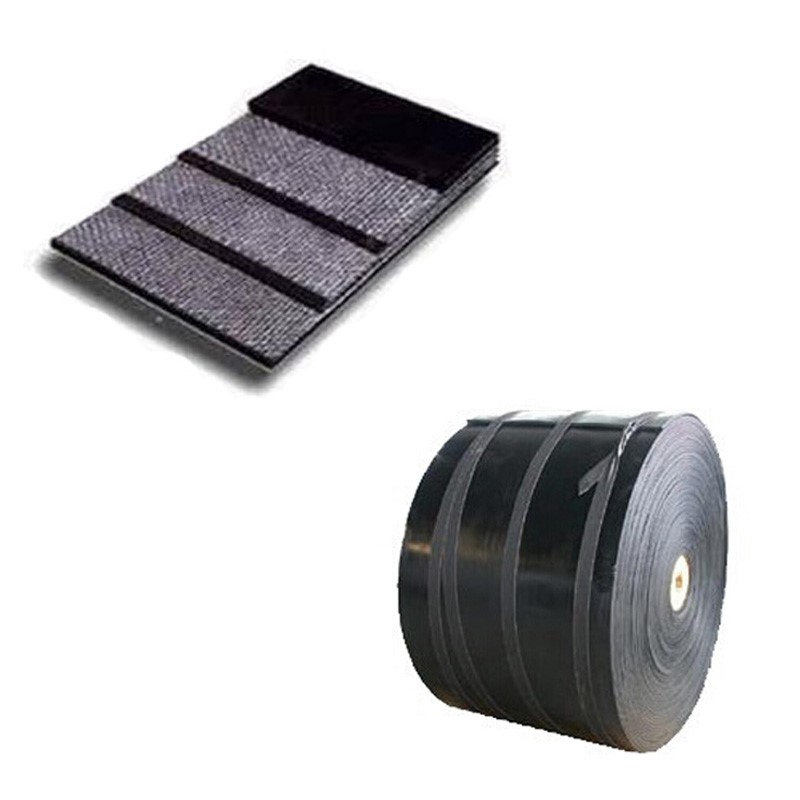

Cotton (CC56) Conveyor Belt

Hits:13685

Add date:2019-06-28

PageSite:http://nbhyxj.net/en/products/1.html

  • Detail

Description

CC conveyor belt is suitable for conveying non-corrosive and pointless bulk or granular particle or powder materials, such as coal, coke, sand or cement under normal temperature with light and thin in construction, high tensile strength, good grooving performance, small power consumption of plant equipment and energy saving.



Product Table

Fabric Type

Fabric Structure

Fabric   spece

Ply   thickness

(mm/p)

Strength   series(N/mm)

Width

(mm)

Length

(m)



warp

weft

2Ply

3Ply

4Ply

5Ply

6Ply



Cotton   (CC)

Cotton   (C)

Cotton   (C)

CC-56

1.1

112

168

224

280

336

400~2000

300



Polyester   cotton (TC)

Polyester   cotton (TC)

Cotton   (C)

TC-70

1.0

140

210

280

350

420

400~2000

300






  Belt carcass


  Between plies

(N/mm)

 Adhesion strength

 Elongation


Between rubber and carcass


  Longitudinal elongation at break


  Longitudinal elongation at load


Rubber thickness1.5mm

Rubber   thickness      1.5mm

﹪≥

﹪≤


Cotton canvas

2.70

2.4

2.7

10

2
